KW coilover suspensions, KW coilover springs, and KW DLC AirSuspensions allow the suspension to be steplessly lowered within the framework of the certified technical component report.
…more
KW Coilovers Street Comfort
The most individual sport suspension with maximum comfort and adjustable rebound damping.
The rebound stage damping is precisely tuned to the respective vehicle on our in-house drive dynamics test facility, with the setting fixed in the mid range.
…moreTwo-Step Compression Stage Valve with Low-Speed
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow.
…moreThe KW coilover spring seat is made from a wear resistant and friction-optimized polyamide composite material with a stainless steel insert.
…moreThe Perfect Height-Adjustable Coilover
In comparison to common coilovers, KW uses a friction -optimized and dirt insensitive trapezoidal thread.
…moreKW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof.
…moreThe use of KW reservoirs provides additional volume for additional oil and additional cooling capacity for particularly high-stressed systems.
…moreTesting Like in Formula 1
Used regularly by automobile manufacturers and international racing teams, KW’s in-house 7-post drive dynamics test facility optimally tunes the KW coilover suspensions according to the design and target group.
…moreThe technical component report is always included in the package and outlines the individual options for lowering the suspension of the respective vehicle.
…moreDepending on the vehicle application, the aluminum uniball top mounts feature scaled camber adjustment and caster can be optionally adjusted.
…moreWith KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance at the touch of a button, even while driving.
…moreWith the KW iSuspension apps, customer-specific adaptations can be made simply and intuitively via one’s own smartphone.
…more(Twin Valve Rebound - Adjustable)
The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows.
…more(Twin Valve Compression Adjustable)
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.
…more(Twin Valve Compression Low Highspeed-Adjustable)
High-end motor sports technology for the most demanding street performance and track performance customers. Two separate valves and a 2-way adjustable compression stage valve enable separate compression damping changes for low and high-speed.
…moreTwin-Valve Compression with Adjustable Low/High Speed
This is the high-end motor sports technology for the most demanding street and track performance customers.
…more-
Customized suspension lowering
KW coilover suspensions, KW coilover springs, and KW DLC AirSuspensions allow the suspension to be steplessly lowered within the framework of the certified technical component report.
…more -
Rebound
The rebound stage damping is precisely tuned to the respective vehicle on our in-house drive dynamics test facility, with the setting fixed in the mid range.
…more -
Compression (Low)
Two-Step Compression Stage Valve with Low-Speed
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow.
…more -
Composite spring seat
The KW coilover spring seat is made from a wear resistant and friction-optimized polyamide composite material with a stainless steel insert.
…more -
Trapezoidal thread
The Perfect Height-Adjustable Coilover
In comparison to common coilovers, KW uses a friction -optimized and dirt insensitive trapezoidal thread.
…more -
INOX-LINE
KW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof.
…more -
Reservoir
The use of KW reservoirs provides additional volume for additional oil and additional cooling capacity for particularly high-stressed systems.
…more -
7-post drive dynamics test stand
Testing Like in Formula 1
Used regularly by automobile manufacturers and international racing teams, KW’s in-house 7-post drive dynamics test facility optimally tunes the KW coilover suspensions according to the design and target group.
…more -
Technical component report
The technical component report is always included in the package and outlines the individual options for lowering the suspension of the respective vehicle.
…more -
Unibal top mount
Depending on the vehicle application, the aluminum uniball top mounts feature scaled camber adjustment and caster can be optionally adjusted.
…more -
Hydraulic elevation
With KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance at the touch of a button, even while driving.
…more -
App-Control
With the KW iSuspension apps, customer-specific adaptations can be made simply and intuitively via one’s own smartphone.
…more -
Rebound stage
Twin Valve Rebound – Adjustable
The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows.
…more -
Compression stage
Twin Valve Compression – Adjustable
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.
…more -
Compression stage
Twin Valve Compression Low Highspeed – Adjustable
High-end motor sports technology for the most demanding street performance and track performance customers. Two separate valves and a 2-way adjustable compression stage valve enable separate compression damping changes for low and high-speed.
…more -
Compression (Low&High)
Twin-Valve Compression with Adjustable Low/High Speed
This is the high-end motor sports technology for the most demanding street and track performance customers.
…more

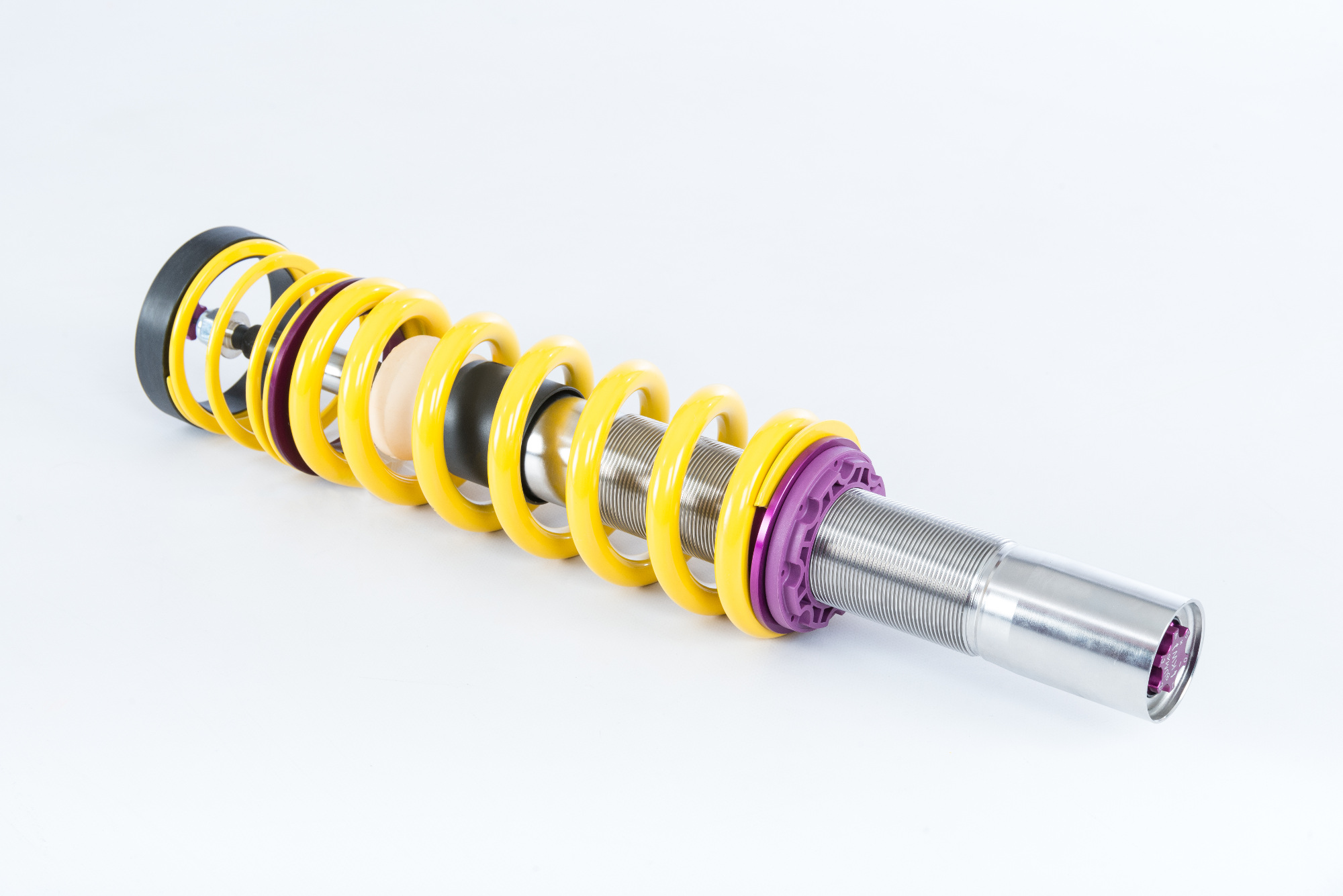

Is your sport suspension too firm? Do you want a sporty look and driving dynamics without having to compromise comfort? KW offers the solution with the Street Comfort suspension – the comfortable sport suspension for a subtle suspension lowering and guaranteed perfect level thanks to the height-adjustment options of a KW coilover suspension. The handling or the comfort can be individually increased as desired via the integrated rebound adjustment. This way the KW Street Comfort coilovers offer the perfect compromise of driving dynamics and ride comfort.
Setup – facory-set pre-configured damper setup with adjustable rebound damping

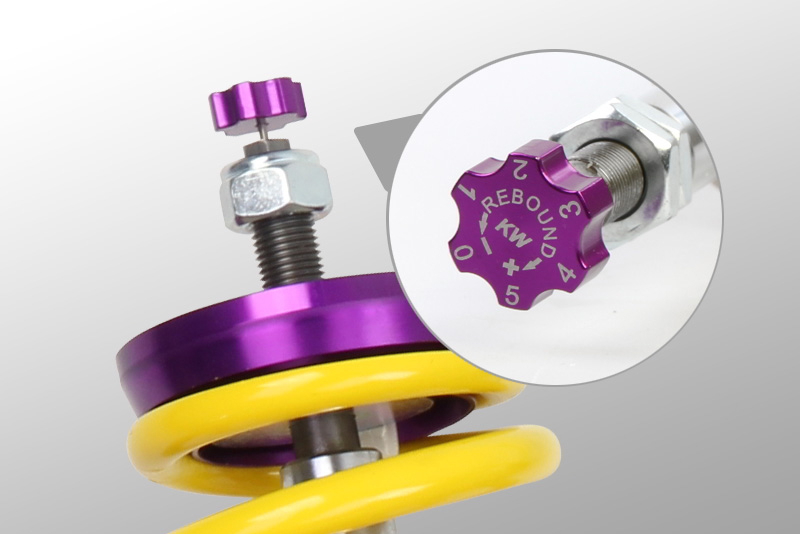

With the KW Street Comfort coilover kit, your comfort-oriented driving pleasure is in the focus. That's why our test engineers were driving on numerous highways, country roads and bad way roads. The KW Street Comfort coilover kit is suitable for all frequent drivers who want to combine the joy of a decent lowering with driving comfort. With the 16-click adjustable rebound stage damping (“TVR-A”-technology), you can additionally set the KW dampers of the KW Street Comfort coilovers tighter or more comfortable.
TVR-A rebound stage damping (Twin Valve Rebound – Adjustable):
The two-step, patented “TVR-A” technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows. This provides a big improvement in terms of ride comfort without influencing the high-speed in the safety-relevant range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.
Continuous lowering
The KW Street Comfort coilover kit allows a maximum or individual lowering within the tested adjustment range. Due to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the continuously lowering can be varied quickly and easily, even after years.
The benchmark for coilovers
As with all KW coilovers, the engineers at KW develop in extensive test cycles on the Nürburgring Nordschleife and in our test center on the KW 7-post rig the vehicle-specific KW damper setup estimated by car enthusiasts worldwide. So you will experience your car even more directly and dynamically with a KW coilover kit.
×
