Due to their lower center of gravity, sportscars often come with minimal ground clearance. Even when driving an everyday road vehicle, the driver often faces the challenge of needing to cross speed bumps or steep driveways. Inattentiveness can lead to scratches and damages to the front lip or side skirts of the vehicle.
With our KW Hydraulic Lift System (HLS), the driver can overcome those obstacles without any damage. The HLS system lifts the vehicle by up to 45 millimeters at speeds of up to 80 km/h with the press of a button. Our KW HLS system is available as a complete suspension kit from KW Suspensions or as a retrofit solution for the original suspension of the car (depending on the vehicle type and application). Our latest revision is called HLS Evolution. It comes with a revised pump and is currently only available for lifting the front axle.

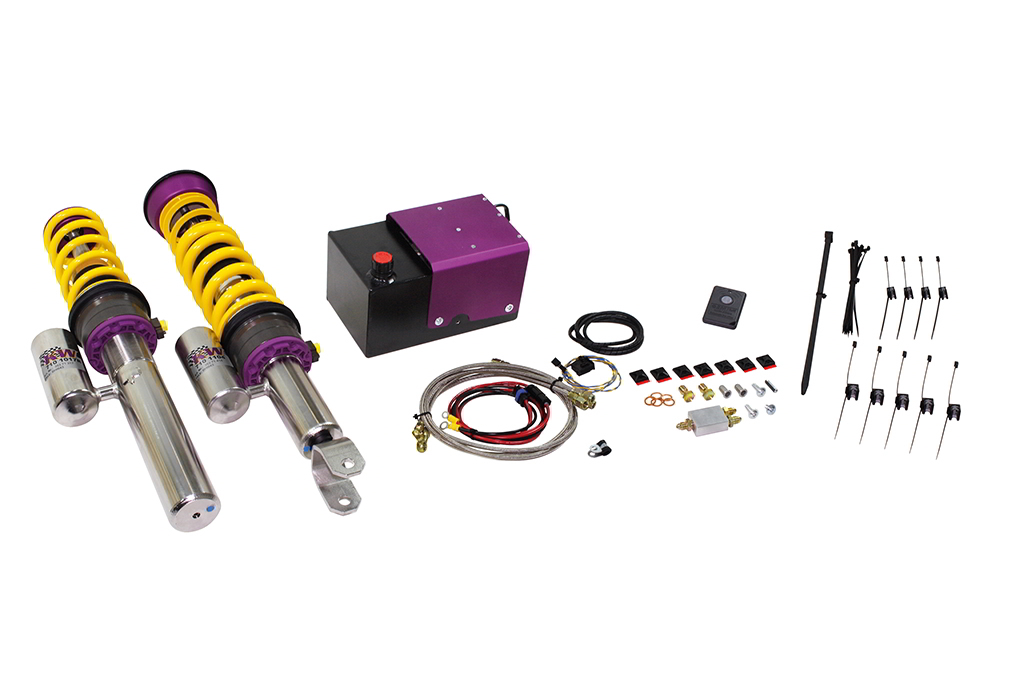

KW HLS Lift Kit – More ground clearance at the touch of a button
The hydraulic cylinder installed between the spring plate and the spring in our coilover lifts the chassis using the onboard control unit. Now, our revised Lift Kit HLS Evolution is only available for lifting the front axle (HLS 2 Evolution).
Those who’d like to increase ground clearance on both the front and rear axles must settle for the older HLS version. We are actively working on the HLS 4 Evolution. The advantage of a hydraulic system is that there is no compression (motion) of the extended cylinder unit during driving. This avoids any unwanted additional damping. The HLS is available with parts certificate (§19 (2)/ §21).
KW HLS Evolution: What has changed in the revised lift system
The new KW HLS Evolution is currently available for lifting the front axle. With the redesign, the new HLS now comes with a smaller pump unit. This allows the HLS 2 Evolution to be installed in the engine compartment without needing major modifications. It is no longer necessary to run cables into the trunk as it was the case with the HLS 2. Additionally, we have saved 3-4 kilograms with the HLS 2 Evolution. Another advantage is that the new HLS system can usually be attached to existing mounting points with a slightly modified original bracket. The KW solenoid valve has been revised to be less susceptible to contamination. We are gradually transitioning to HLS Evolution. However, the old system is still available for some applications.
Endless stepless lowering options for your car with KW HLS
In combination with our KW coilovers, the Hydraulic Lift System from KW Suspensions allows a subtle lowering within the tested adjustment range. Thanks to high-quality and durable materials, individual lowering can be varied at any time. Dust protection elements and bump stops are already included, allowing maximum technical and legal lowering. With our KW HLS, customers experience sporty but harmonious driving without compromising on driving dynamics. This product was also tested on both our 7-post rig and on real tracks like the renowned Nürburgring Nordschleife.
The benchmark for coilovers
As with all KW coilovers, the engineers at KW develop in extensive test cycles on the Nürburgring Nordschleife and in our test center on the KW 7-post rig the vehicle-specific KW damper setup estimated by car enthusiasts worldwide. So you will experience your car even more directly and dynamically with a KW coilover kit.
×
